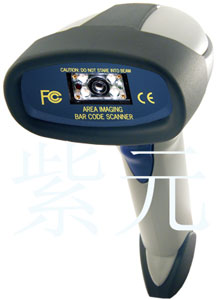

TYSSO TD-5208二维无线条码扫描器
产品简介：
输出光源: 红光 650 nm.(波长) ,
可译码多种规格条形码,
适合各种产业之生产应用,
CMOS图像感应器,
光学扫描分辨率: 1280x960,
使用长效型锂电池, 并附送专用充电配件,
数据传输方式: RS-232 或 USB,
可读一维及二维条形码
Optical |
Light Source |
Illumination: 650 nm; Aiming 615nm |
Scan Angle |
50￠XHorizontal, 37.5￠XVertical |
Scan Pattern |
Area |
Scan Area |
118.4mm x 86.2mm(4.7“ x 3.4“) at 118mm 236.9mm x172.4 mm(9.3“x6.8“) at 245mm
(9.6“) from the scanner window edge |
Rotation Sensitivity |
360 aroung the optical Axis |
Minium Element Width |
10mm(4.0 mil) 1-D
191mm(9.5 mil) 2D,Matrix |
Focal Point |
9cm(4.0“) |
Resolution |
1.3 mega pixel(1280x 960) |
Print Contrast |
20% minium |
Symbologies |
1-D |
Code 39, Code 93, Code 128
UPC/EAN/Jan, Code 2 of 5, Code 11
Codabar,Plessey,GSI Databar,
telepen,Trioptic |
2-D |
PDF417,Micro PDF 417,QR Code,Micro
QR Code,Data Matrix, Aztec Code,
Maxicode,CodaBlock,Composite Code,POSTNET,PLANET,UPU,Intellgent Mail,Canada Post, Australia Post,Japanese Post,Royal Mail RM4SCC. KIX Code |
OCR Font(optional) |
OCR-A,OCR-B,E-13B,MICR |
Electrical Characteristics |
Operating Voltage |
+15V, ó5% |
|
|
Typical Operating Current |
235 mA |
|
|
Peak Operating Current |
400 mA (USB),400 mA (RS-232) |
|
|
Idle Current |
160mA (USB),125 mA (RS-232) |
|
|
Sleep Current(USB) |
65 mA (USB), 25 mA(RS-232) |
|
|
Suspend Current(USB) |
600 uA |
|
|
Power Down Current(RS-232) |
500 uA |
|
|
LED Class |
Class 1 |
|
|
Interface |
USB,RS-232 |
|
|
Mechanical Characteristics |
Cable Length |
1.8m Staraght cable |
|
|
|
Case Material |
ABS+polycarbonate,co-molded rubber |
|
|
Weight(approx.) |
133g (w/o cable) |
|
|
|
Shock Resistance |
1 meter drop onto concrete |
|
|
|
Environment |
Ambient Light |
0~100,000 lux |
Operating Temperature |
0￠XC to 40￠XC (32￠XF to 104￠XF) |
Storage Temperature |
(-20￠XC to 70￠XC (-4￠XF~158￠XF) |
Relative Humidity |
5% to 95% ,non-condensing |
|
|
|
|
|
|
|
|
|
|
|
|
Barcode Element |
Depth of Field*(In the field of View) |
Start
(From Scanner Window Edge) |
End
(From Scanner Window Edge) |
Total |
1-D |
.127 mm |
5 mil |
41 mm (1.6“) |
136mm(5.3“) |
95mm(3.7“) |
|
.254 mm |
10 mil |
21 mm (0.8“) |
201(7.9“) |
180mm(7.1“) |
|
.330 mm |
13 mil |
16 mm (0.6“) |
301mm(11.8“) |
285mm(11.2“) |
PDF |
.127 mm |
5 mil |
36 mm |
151mm(5.9“) |
115mm(4.5“) |
|
.254 mm |
10 mil |
16 mm |
261mm(10.2“) |
245mm(9.6“) |
Data Matrix |
.254 mm |
10 mil |
41 mm (1.6“) |
86 mm(3.3“) |
45mm(1.8“) |
|
.381 mm |
15 mil |
26 mm (1.0“) |
151mm(5.9“) |
125mm(4.9“) |
|
.508 mm |
20 mil |
31 mm(1.2“) |
251mm(9.8“) |
220mm(8.7“) |
*Depth of field is for reference only. Actual values may vary depending on testing conditions |
