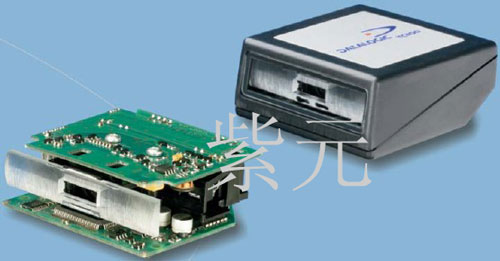

Datalogic TC1100固定式CCD条码阅读器
产品简介:
TC1100是一款嵌入式、紧凑型的CCD读码器，具有以下特点：强大的条码读取能力、增强的代码重建功能（通过采用Puzzle Solver技术）、PDF417条码解码、灵活接口的一体化架构、基于windows的编程工具、重量轻且紧凑的尺寸;
特点与优点:
线性CCD读取器;
扫描频率：270次/秒;
1个输入 + 1个输出;
RS232串口;
5伏直流电压;
特有的读取范围：50 - 200毫米;
应用范围:
该系列产品目前可以满足以下应用需求:
门禁系统;
生化分析仪器;
自动化磁带库（ATL）;
自助系统（ATM，kiosk）;
博彩自动化机器（抽奖、彩票等);
胶片处理机;
型号:
产品序列提供以下型号：
产品订货号; 产品描述;
939501000; TC1100-0100 CCD ENGINE LINEAR;
939501020; TC1100-1100 CCD SCANNER, DIR, LINEAR;
TC1100-0100=CCD Scan Engine for Linear codes
TC1100-0200=CCD Scan Engine for Linear codes and pdf417 codes
TC1100-1100=CCD Scanner for Linear codes
TC1100-1200=CCD Scanner for Linear codes and pdf417 codes
附件:
以下附件可用于简化安装和优化产品性能：
产品订货号; 产品描述;
93A201101; GFC-TC1100 80° DEG.MIRROR;
93ACC1670; TC1100 REFERENCE MANUAL+CONFIGURATOR SW;
Specifications
ELECTRICAL CHARACTERISTICS
POWER SUPPLY: 5 Vdc ± 5%
POWER CONSUMPTION: 1.5W
MECHANICAL CHARACTERISTICS
DIMENSIONS: 63 x 60.5 x 27mm (2.48” x 2.38” x 1.06”) for scan engine
70.7 x 68.6 x 30.5 mm(2.70” x 2.78” x 1.20”) for complete scanner
CASE MATERIAL: ABS (complete scanner)
PERFORMANCE
SCAN RATE: 270 scans/sec.
READING RANGE: 35 to 305 mm
SENSOR: CCD Solid state (3648 pixels)
DECODER TYPE: Built-in
MAX RESOLUTION: 0.076mm (3mils)
READABLE CODES: 2/5 family, Code 39, EAN/UPC, EAN128, Code 128, Code 93, CODABAR, TELEPEN, PLESSEY, Code MSI, Code Delta IBM, Code 11, Code 16K, Code 49
(stacked code version) PDF417, CODABLOCK
INTERFACES: RS232, Wedge, Pen emulation
INPUT SIGNAL: Trigger (optocoupled)
OUTPUT SIGNAL: Good Read (optocoupled)
LED INDICATOR: ‘Power On’; ‘Good Read’
PROGRAMMING METHOD
Automatic (via RS232): SW commands through the serial port
DL Sm@rtSet: Windows configuration program
ENHANCED FEATURES: Puzzle Solver CABLE LENGTH 100 cm (39.3 in.)
CONNECTOR TYPE: 25 pins, D-Shell female
ENVIRONMENT
OPERATING TEMPERATURE: 0 to 50 °C (32 to 122 °F)
STORAGE TEMPERATURE: -20 to 70 °C (-4 to 158 °F)
AMBIENT LIGHT IMMUNITY: Up to 100.000 lux
HUMIDITY: 90% non-condensing
VIBRATION RESISTANCE: IEC 68-2-6 test FC 1.5mm; 10 to 55 Hz; 2 hours on each axis
(complete scanner)
SHOCK RESISTANCE: IEC 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis
(complete scanner)
