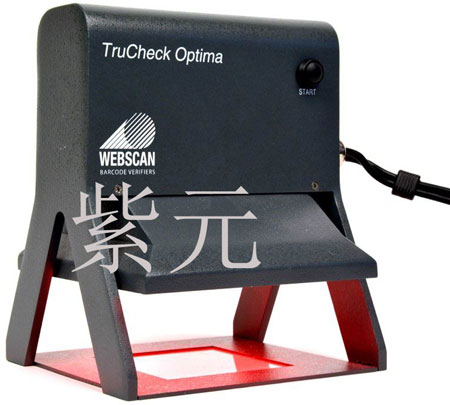

Webscan TruCheck Optima 二维条码检测仪USB-DC25,USB-DC35,USB-DC36,USB-DC37,USB-DC51,USB-DC71
条码等级检测/条码等级/WEBSCAN USB-DC 激光条码 一维二维通用
支持码制：
Data Matrix
QR Code
Aztec Code
MaxiCode
GS1-DataBar (formerly RSS)
GS1-Composite Symbology
UPC/EAN
Code 128
Code 39
TLC-39
Codabar
PDF
417
Micro PDF 417 (limited to Field of View size)等等目前通用的一维、二维条码
选型参数：
型号 |
检测范围 |
DC25 |
25mm x 18mm |
DC51 |
51mm x 38mm |
| DC71 |
70mm x52mm |
光源：
Narrow band 660nm LED自带长寿LED光
特征描述：
CCD Imager with Integrated Illumination

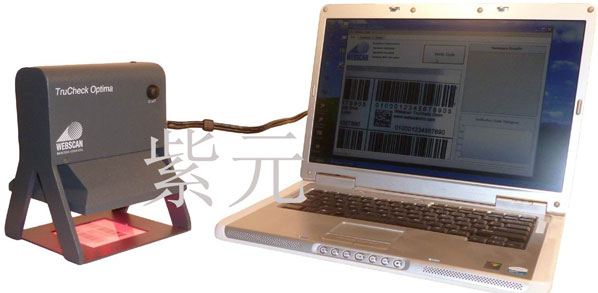

USB interface to PC
ISO grading, AS 9192, AIM DPM
Data export to printer, PDF file or Excel
Software easily upgradeable
Calibrated to NIST traceable standards
Parses and validates industry standard
data formats
Variable aperture size
解码/评级详述：

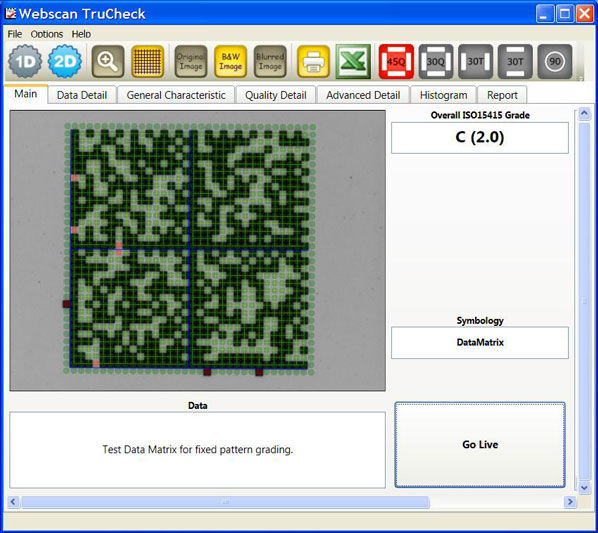

Full ISO 15415 Grading A,B,C,D,F:Unused Error
Correction,Modulation,Axial non-uniformity,
Grid non-uniformity,Symbol Contrast,Reference
Decode,finder Pattern Damage ,Bar Width Growth
(X and Y),Quiet Zone,AIM DPM Grading :Cell
Contrast ,Cell Mod.
环境要求：
Temperature:0-40°C
Humidity:5%-95% noncondensing
一致性标准：
ISO 15415，15426-2
MIL-STD 130 （L through N）
ISO 16022,18004,16023,24778
AIQG AS9132,
AIM DPM
可选件：
GSI Calibrated Conformance Test Card
Extended Service Plans
Webscan TruCheck Optima USB-DC25，USB-DC25D，USB-DC35，USB-DC36，USB-DC37，USB-DC51，USB-DC71
SPECIFICATIONS
Symbologies:
Data Matrix, QR Code, Aztec Code, MaxiCode, GS1-DataBar (formerly RSS), GS1-Composite Symbology,UPC/EAN, Code 128, ITF-14, I25, Code 39, TLC-39,Codabar, PDF 417, Micro PDF 417 (limited to Field ofView size), Pharmacode, MSI/Plessey
Field of View Options and X-Dimension Capability
Version Field of View Min X Dim
Model |
Field of View |
Min X Dim |
Optima Standard |
2 “ x 1 1/2” (51 x 38 mm) |
8.0 mil |
Optima +Plus |
2 3/4“ x 2 1/16” (70 x 52 mm) |
8.0 mil |
Options:
GS1 Calibrated Conformance Test Card
Extended Service Plans
Light Source:
Narrow band 660nm LED
Features:
CCD Imager with Integrated Illumination
USB interface to PC
ISO grading, AS 9192, AIM DPM
Data export to printer, PDF file or Excel
Software easily upgradeable
Calibrated to NIST traceable standards
Parses and validates industry standard
data formats
Variable aperture size
Decoding/Grading Analysis Specifications:
Full ISO 15415 Grading A, B, C, D, F: Unused ErrorCorrection, Modulation, Axial non-uniformity,
Grid non-uniformity, Symbol Contrast, ReferenceDecode, Finder Pattern Damage, Bar Width Growth (Xand Y), Quiet Zone, AIM DPM Grading: Cell Contrast,Cell Mod.
Physical Characteristics:
Dimensions (HxWxD) 8.0” x 6.0” x 7.5”
Weight: 3 lbs.
Environment:
Temperature: 0-40°C
Humidity: 5% - 95% noncondensing
Conformance:
ISO 15415, 15426-2
MIL-STD 130 (L through N)
ISO 16022, 18004, 16023, 24778
AIQG AS9132,
AIM DPM (only 45Q)
备注： 以上产品资料可能包含技术上不准确的地方，请联系我们。Geeren是紫元公司的注册商标，所有其它商标归属各自所有者。 |
